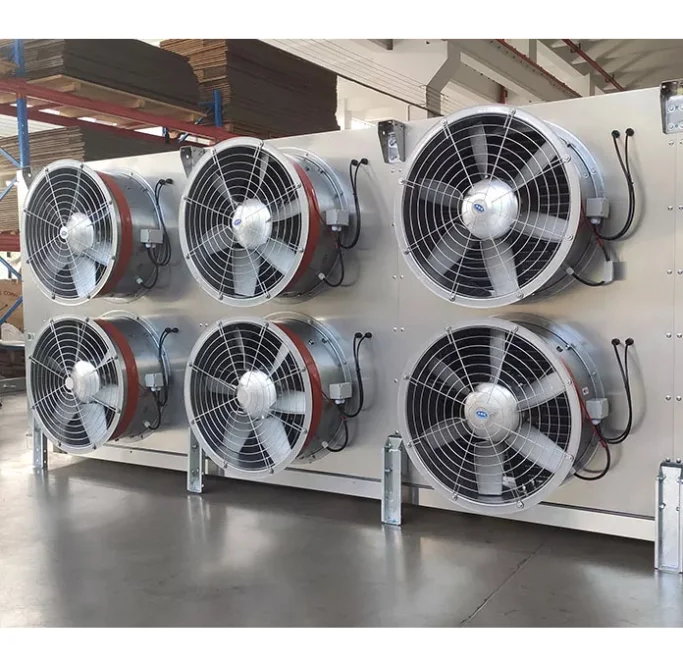

Blast Freezer & Chillers — Freon Evaporator Unit
Fast Cooling. Uniform Airflow. Built for Extreme Conditions.
Fast Cooling. Uniform Airflow. Built for Extreme Conditions.
Prime Blast Freezer & Chillers – Freon Evaporator Units are engineered for rapid cooling and freezing applications where precise temperature control and high cooling capacity are essential. Designed with advanced fin technology, heavy-duty construction, and multiple fan configurations, these units provide uniform airflow, efficient heat transfer, and reliable performance in demanding industrial refrigeration environments.
Suitable for both blast chilling and blast freezing applications, the units are available in floor or ceiling-mounted configurations with durable GI powder-coated casing, optimised fin spacing, and high-performance fans to ensure long service life and energy-efficient operation.
Built to run, season after season.
Advanced Fin Design
Optimised fin geometry improves heat transfer while reducing air-side pressure drop.
Multiple Fan Configurations
Available with 2, 4, 6, and 8 fan models to suit different cooling capacities.
Wide Fin Spacing
Fin spacing from 2 mm to 12 mm supports various chilling and freezing applications.
High Cooling Capacity
Designed for chiller capacities up to 120 kW and freezer capacities up to 100 kW.
Floor & Ceiling Mounting
Flexible installation options for different cold room layouts.
GI Powder-Coated Casing
Corrosion-resistant casing ensures long service life in industrial environments.
Wide Operating Temperature
Suitable for applications from -5°C to -45°C.
High-Performance Fans
Wing and multi-wing fans provide efficient airflow with low energy consumption.
Low Pressure Drop Coil
Improves cooling efficiency while reducing operating costs.
Heavy-Duty Construction
Built for continuous industrial refrigeration applications.
Specifications
| Product Type | Blast Freezer & Chiller Evaporator |
|---|---|
| Refrigerant | Freon |
| Temperature Range | -5°C to -45°C |
| Chiller Capacity | 25–120 kW |
| Freezer Capacity | 23–100 kW |
| Fan Configuration | 2, 4, 6 & 8 Fans |
| Fan Diameter | 630–800 mm |
| Fin Spacing | 2 mm – 12 mm |
| Mounting | Floor or Ceiling Mounted |
| Casing Material | GI Powder Coated |
| Fin Type | Corrugated Aluminium Fin |
Where it's used.
- Curd Processing
- Ice Cream Storage
- Meat & Poultry
- Dairy Industry
- Chocolate Processing
Product questions, answered.
What is a Blast Freezer & Chiller Evaporator Unit?
A heavy-duty evaporator designed for rapid chilling and freezing applications using Freon refrigerants.
What temperature range does it support?
From -5°C to -45°C.
What fan configurations are available?
Models are available with 2, 4, 6, and 8 fans.
Can it be floor or ceiling mounted?
Yes, both installation options are available.
What casing material is used?
GI powder-coated steel casing.
Which industries use these units?
Dairy, meat processing, ice cream, chocolate manufacturing, and food processing.
Prime Blast Freezer & Chillers are designed for rapid product cooling and freezing while maintaining consistent temperature distribution. Featuring advanced fin designs, powerful fan configurations, and durable construction, these evaporator units deliver dependable performance, energy efficiency, and long service life across a wide range of industrial refrigeration applications.
Capacities & model codes

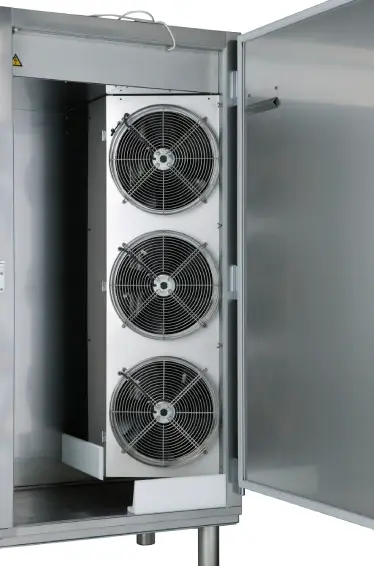

Blast Chiller Unit
Designed for rapid chilling applications requiring fast temperature pull-down and uniform air circulation.
- Suitable for positive temperature applications
- Chiller capacity up to 120 kW
- Floor or ceiling-mounted installation
- Ideal for dairy, chocolates and food processing
Blast Freezer Unit
Engineered for deep freezing applications where fast freezing preserves product quality.
- Temperature range down to -45°C
- Freezer capacity up to 100 kW
- Multiple fan configurations available
- Suitable for meat, poultry and ice cream storage
