Cold Chain Doors.
A cold storage facility is only as reliable as its doors. Every square metre of insulated wall panel installed in your facility does its job well — cold stays in, warm stays out — until the door opens, or the door doesn't seal properly when closed. Poorly-sealed doors waste refrigeration energy every hour of operation, introduce temperature fluctuations that damage product quality, and eventually fail in ways that require expensive replacement.
Prime Coil manufactures the complete range of cold storage doors used in modern industrial cold-chain facilities — sliding doors for large openings, hinged doors for smaller access points, automatic doors for high-traffic hands-free operation, specialised blast freezer doors for extreme cold-side duty, glass display doors for retail merchandising, and high-speed rolling doors for the highest-throughput applications. Every door is engineered specifically for cold-chain operating conditions, not adapted from commercial or industrial door platforms designed for warehouse or factory use.
Why cold storage doors are a specialty category
Cold storage doors face engineering challenges that no other door application shares — continuously cold temperatures on one side, warm ambient on the other, humid air condensing on cold surfaces, sanitation chemicals repeatedly washing the door, thousands of opening cycles per year, and the constant pressure differential from operating refrigeration systems trying to force cold air out through every seal gap.
Standard commercial doors — even good commercial doors — fail predictably in these conditions:
Warm-side doors sag on their hinges because the constant thermal cycling between warm and cold sides distorts the door panel over time. Within 2-3 years, the seal at the top of the door has a visible gap. Within 5 years, the door is unserviceable.
Steel tracks corrode in the humid environment of every cold storage facility. Cheap sliding door tracks fail within 3-5 years. Aluminium extrusion tracks last 20+ years — the difference between a door that works and a door you're constantly maintaining.
Standard EPDM gaskets stiffen at cold temperatures and lose their ability to compress into a hermetic seal. Freezer doors need low-temperature EPDM formulations that stay flexible down to -40°C. Blast freezer doors need heated seal frames to prevent gasket freeze-stick during high-cycle operation.
Insulation thickness must match room temperature. A chiller room door with 80mm PUF works fine at +5°C — the same door on a freezer at -20°C loses heat through condensation and creates dripping problems. Blast freezer doors need 150mm PUF minimum.
Every door in our range is engineered around these specific cold-chain requirements — not retrofitted from a general industrial door platform.
The complete Cold Chain Doors range
Our door range covers every access requirement in a modern cold storage facility:
Sliding doors — the industry standard
Single-Leaf Sliding Doors for openings from 1,000 to 2,400 mm — the most common cold storage door type. Aluminium extrusion overhead track with 3D closing movement produces hermetic seal on all four sides. Manual operation standard, motor drive upgrade available.
Double-Leaf Sliding Doors for openings from 2,000 to 4,000 mm and above — wider access for forklift and pallet movement. Two door panels close together from opposite sides, sealing at a central meeting point plus four-side frame seal. Same aluminium track and hermetic seal technology as single-leaf.
Automatic Sliding Doors for high-cycle applications requiring hands-free operation — dedicated automatic platform with motor drive, proximity sensors, and safety edge protection. Different from sliding doors with retrofit motor kits: purpose-built for continuous automatic duty.
Hinged doors — for smaller openings
Hinged Doors and Insulated Hinged Doors for openings under 1,200 mm where sliding geometry is not required — pedestrian access, service doors, escape routes. Heavy-duty hinges engineered for cold storage weight loads with adjustable seal compression.
Specialty cold-side doors
Blast Freezer Doors for chambers operating at -30°C to -40°C — heaviest-duty construction, maximum insulation thickness, specialised low-temperature gasket materials, heated seal frame to prevent freeze-stick. Purpose-built for blast freezing operations that hinged or standard sliding doors cannot handle.

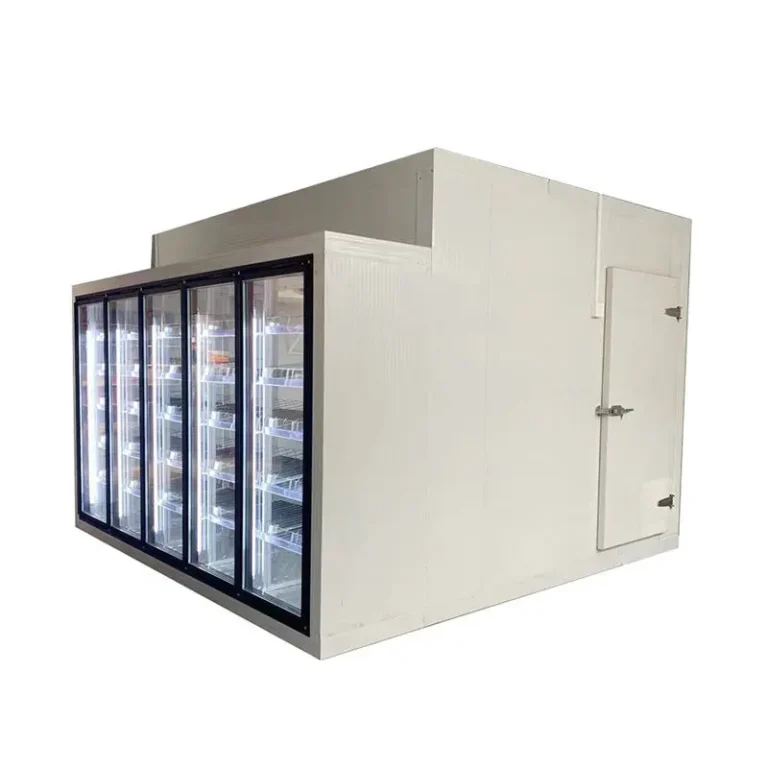

Display Glass Doors for retail merchandising applications — insulated glass panels in cold room walls allow product display without opening the door. Common in beverage warehousing, produce showrooms, and specialty retail cold storage.
High-throughput specialty
Rolling High-Speed Doors for facilities where door cycle count exceeds 200 openings per day — a flexible curtain rolls up and down in seconds rather than sliding open. Dramatically reduces cold air loss per cycle in operations like distribution warehouses, food processing lines, and cross-dock facilities.
Building envelope

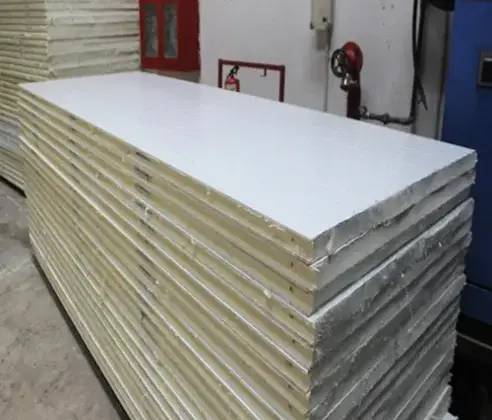

Cold Room / Storage Panels — PUF and PIR insulated wall and ceiling panels that form the building envelope of every cold storage facility. Panels are the walls; doors are the access points; together they form the complete cold-storage building system.
Why choose Prime Coil for cold storage doors
Cold storage doors are a specialty product category, but many facilities buy them from general industrial door suppliers who treat cold-chain applications as a variant of commercial door business. The result is doors that look right on installation but fail predictably within 2-3 years of cold storage operation.
Prime Coil takes a different approach:
Cold-chain engineering primary. Every door in our range is engineered from the ground up for cold-chain operating conditions — track materials, gasket formulations, insulation thickness, and hardware selection are all chosen for continuous cold-side operation, not adapted from warmer duty.
In-house manufacturing. Doors are fabricated at our own facility with quality control over track profiles, gasket bonding, insulation injection, and hardware assembly. Third-party components (motor drives, sensors, safety edges) come from proven brands with long-term parts availability.
Complete cold-chain expertise. We manufacture refrigeration equipment, atmospheric sensors, PLC controls, and humidification alongside doors — the same engineering team that specifies your refrigeration plant understands what your doors need to do. Coordinated supply, single accountability, 20+ year support relationship.
Built for Indian cold-chain conditions
Prime Coil doors are engineered specifically for Indian cold storage operating environments — high summer ambient temperatures (regularly 40-45°C outside cold rooms), monsoon humidity, uncertain grid power for automatic operation, and cooling water quality that affects everything from evaporator design to door sanitation.
Every door is fabricated at our facility, tested against site conditions rather than laboratory ideals, and delivered with a support commitment that recognises we may need to visit the site for the next 20 years.
Prime Coil & Condensers Pvt. Ltd. supplies cold storage doors across India and to export markets as part of complete cold-chain infrastructure installations.
